HINGES

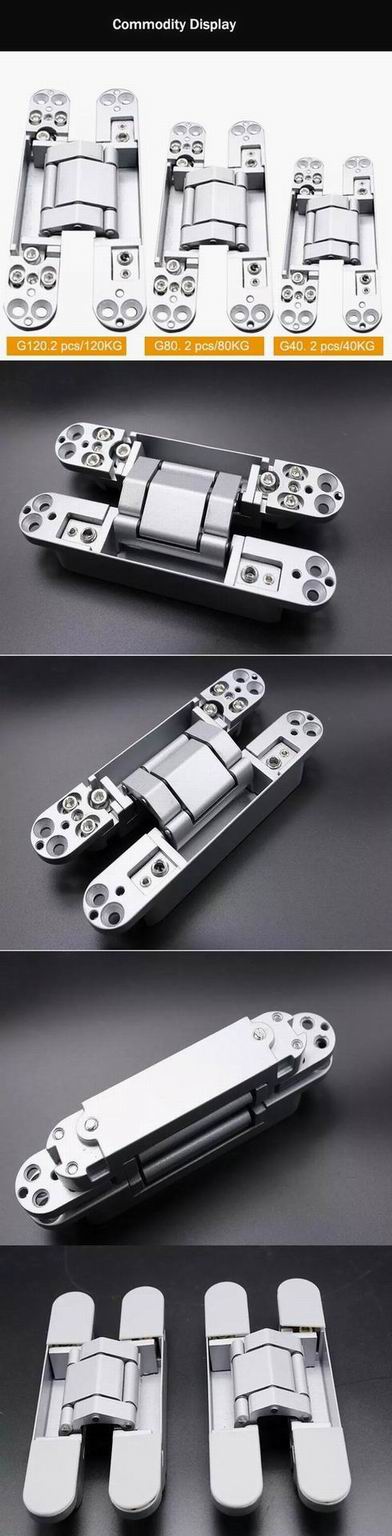

G80 Hiding door hinge

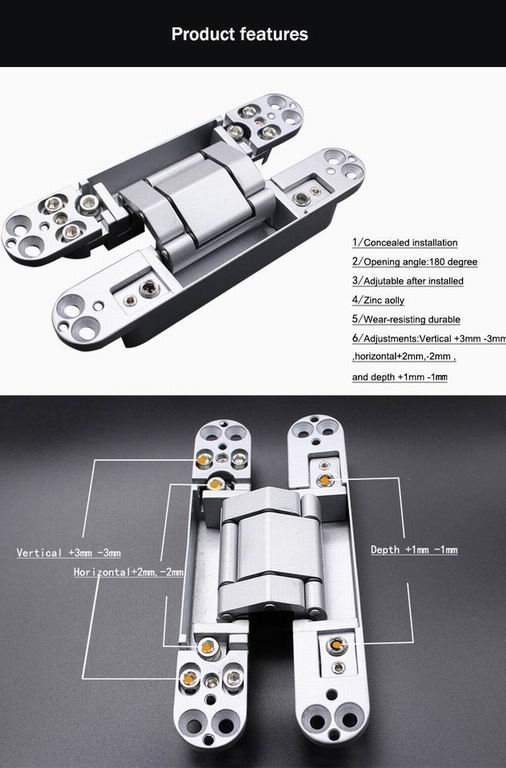

Features

For wooden doors

For flush doors

Concealed installation

Adjutable after installed

Adjustments:

Vertical +3mm -3mm ,horizontal+2mm,-2mm ,and depth +1mm -1mm

Opening angle:180 degree

Technical data:

Max.door weight with 2hinges   40kg

Min.door thickness            35mm

Max.door width               850mm

Slim design for thin door        21mm

Materials:  Zinc Alloy,Alum

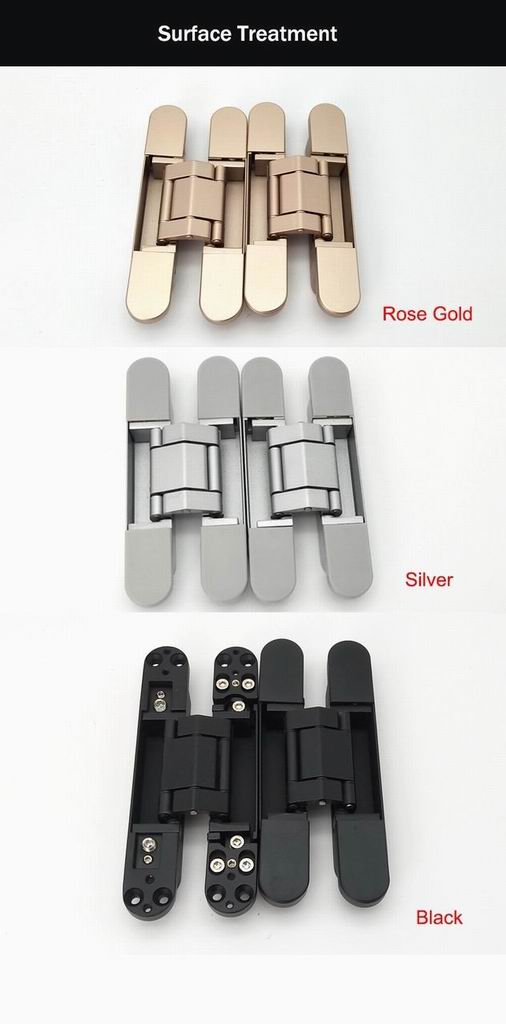

Finishes :Chrome ,Nickle ,Brass and Painting

Installation : wood tapping screws, Iron screws(optional)

Note

Finger protection due to small gap between door and frame

Application

Completely concealed for flush door with wood steel or aluminum frame

180 degree opening angle zinc alloy hiding door hinge

180 degree opening angle zinc alloy hiding door hinge

180 degree opening angle zinc alloy hiding door hinge

180 degree opening angle zinc alloy hiding door hinge
